Inverters
FeaturedSPE 8000-12000 ES
Growatt
Specifications
Peak efficiency
96.5%
Battery voltage
48V
MPP trackers
2 (dual)
Protection rating
IP20 (indoor installation)
Max PV input voltage
550V DC
Battery types
Lithium and lead-acid
Backup switching time
Under 20ms (single unit)
Communication
WiFi / 4G
Max parallel operation
Up to 108kW
Overview

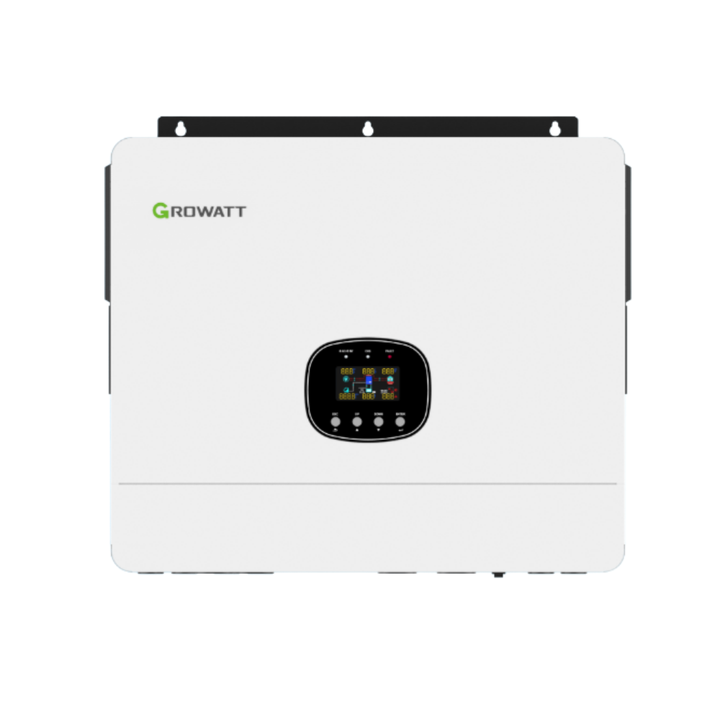

The Growatt SPE 8000-12000 ES is a hybrid solar inverter family spanning 6kW to 12kW, combining an MPPT solar charge controller, inverter, and battery management in one unit.
It reaches up to 96.5% peak efficiency through dual MPPT trackers, and operates on a 48V battery system (lithium and lead-acid chemistries supported). Dual outputs allow smart load management, and the unit supports grid-tied peak-shaving operation. Multiple units can be paralleled for expansion up to 108kW.
Indoor installation only. This unit is rated IP20, which is not weatherproof — it must be installed in a sheltered, indoor location. Do not install it outdoors or anywhere exposed to rain, dust, or direct weather.
Key Features
- Dual MPPT trackers
- Dual outputs for smart load management
- Grid-tied function for peak shaving
- Parallel expansion up to 108kW
- Indoor installation only — IP20 is not weatherproof
