Monitoring Systems

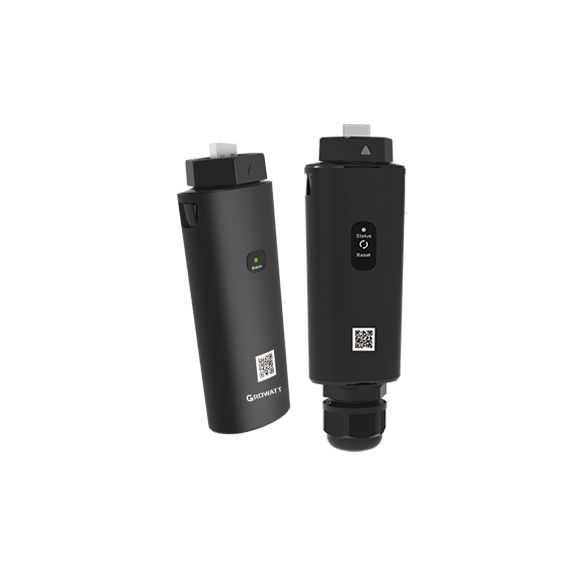

Growatt ShineWiFi-X
Growatt
by Growatt
Get current pricing
Priced to your system size and installation — send your details and we'll reply with a quote, usually the same day.
Get a PriceSpecifications
- Wireless standard
- 802.11 b/g/n
- Frequency range
- 2.4GHz~2.5GHz (2412MHz~2484MHz)
- Transmit power (802.11b)
- 16±2 dBm (@11Mbps)
- Transmit power (802.11g)
- 14±2 dBm (@54Mbps)
- Transmit power (802.11n)
- 13±2 dBm (@HT20, MCS7)
- Receiver sensitivity (CCK, 1 Mbps)
- -90dBm
- Receiver sensitivity (CCK, 11 Mbps)
- -85dBm
- Receiver sensitivity (6 Mbps 1/2 BPSK)
- -88dBm
- Receiver sensitivity (54 Mbps 3/4 64-QAM)
- -70dBm
- Receiver sensitivity (HT20, MCS7)
- -67dBm
- Data interface
- USB
- Operating voltage
- 5V(±5%)
- Rated power
- 1.2W
- Display
- LED
- Supported servers
- ShineServer
- Inverter communication
- USB (Modbus RTU protocol)
- Server communication
- TCP (Modbus TCP protocol)
- Max. communication range
- 50m
- Default server URL
- server.growatt.com
- Configuration type
- APP configuration
