Inverters

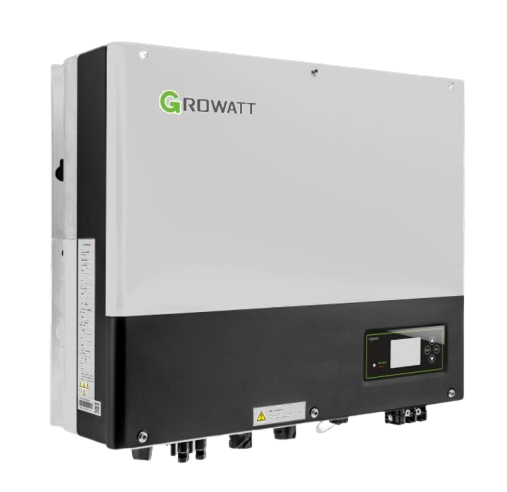

Growatt SPH 10000TL-HU
Growatt
Specifications
AC nominal power
10,000W
Number of MPP trackers
3
Peak efficiency
97.5%
Protection rating
IP65
Maximum PV input
15,000W
DC/AC ratio
1.5
Battery voltage
40–60V
Battery types
Lithium / lead-acid
Max charge / discharge current
200A
UPS switching time
Under 10ms
Communication
WiFi / RS485 / CAN / USB
Surge protection
Type II, DC and AC sides
Max units in parallel
6
Operating temperature
−25°C to +60°C (derating above 45°C)
Warranty
5 years
Overview
The Growatt SPH 10000TL-HU is a single-phase hybrid inverter, part of Growatt's SPH TL-HU series (also available at 6kW and 8kW).
It delivers 10,000W of AC nominal power through three independent MPPT trackers, with a UPS function that switches to backup power in under 10 milliseconds. The inverter supports DC-coupled, AC-coupled, and AC-retrofit battery configurations, making it suitable for both new installations and adding storage to an existing grid-tied system.
Key Features
- UPS function, 10ms transition
- DC-coupled, AC-coupled and AC-retrofit application support
- Supports charging from a generator
- Supports 400V three-phase systems
- Up to 6 units in parallel
